Generating pollution rose reports
Who is this article for?
Users who want to generate a pollution rose report.
No special access or permissions are required.
This tutorial guides you through generating a wind direction frequency report correlated with pollutant data in Ideagen Envirosuite.
You will learn how to edit report details, select specific dates, run the pollution rose report, and generate a PDF for sharing or analysis.
Generating a pollution rose report
To generate a pollution rose report:
Log into the system.

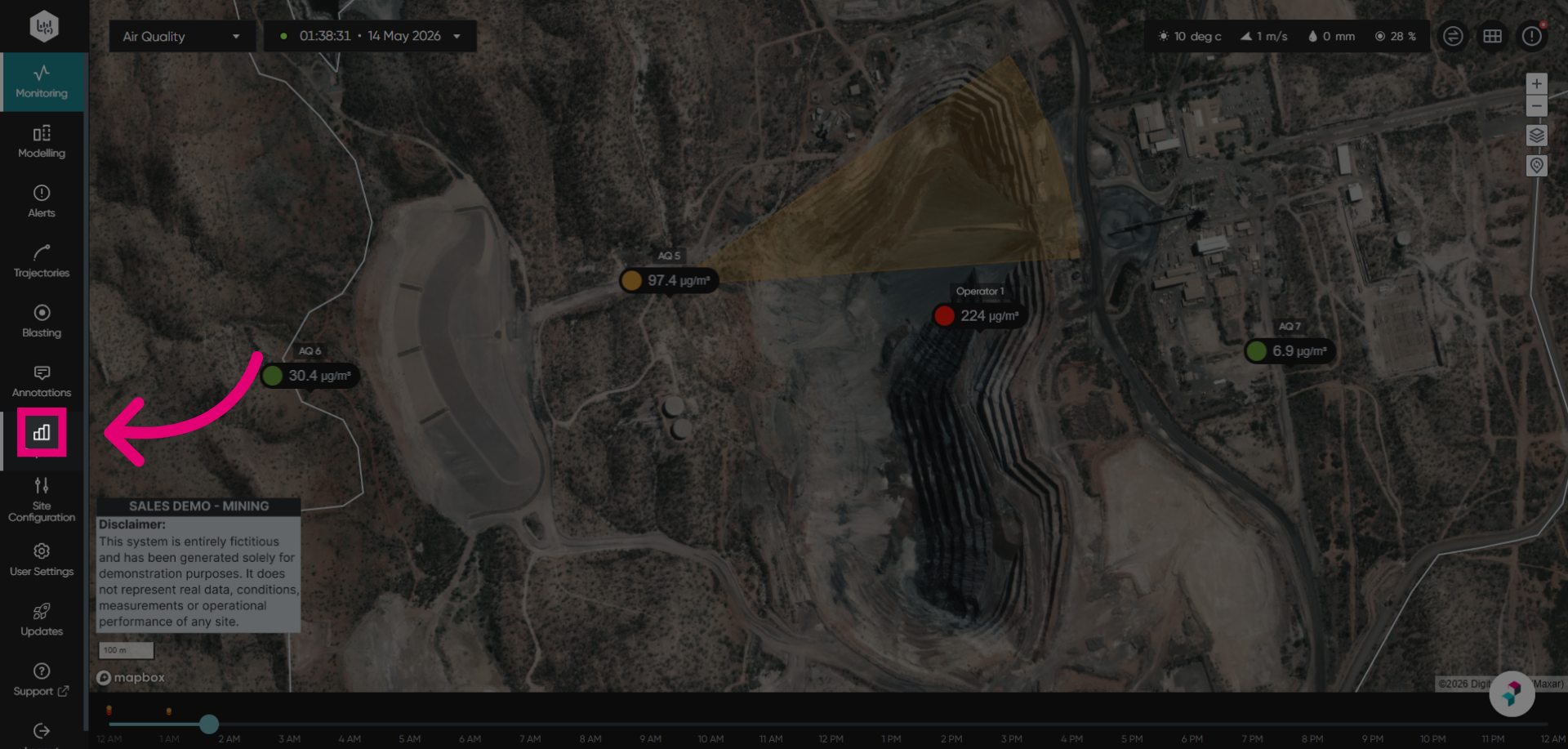

Click the Report Module to access the Pollution Rose report section within Ideagen Envirosuite.

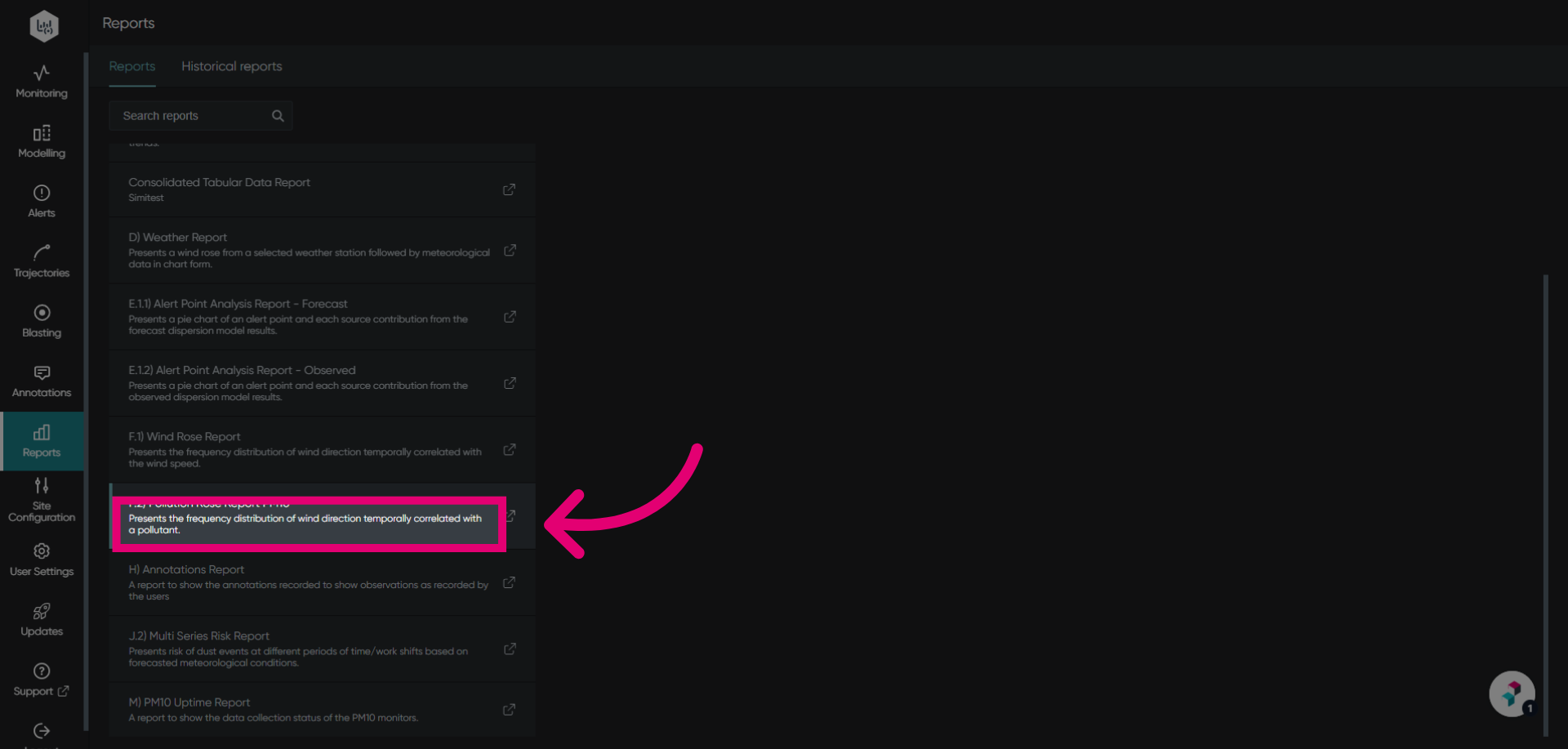

Click Pollution Rose Report to view the report in a new tab.

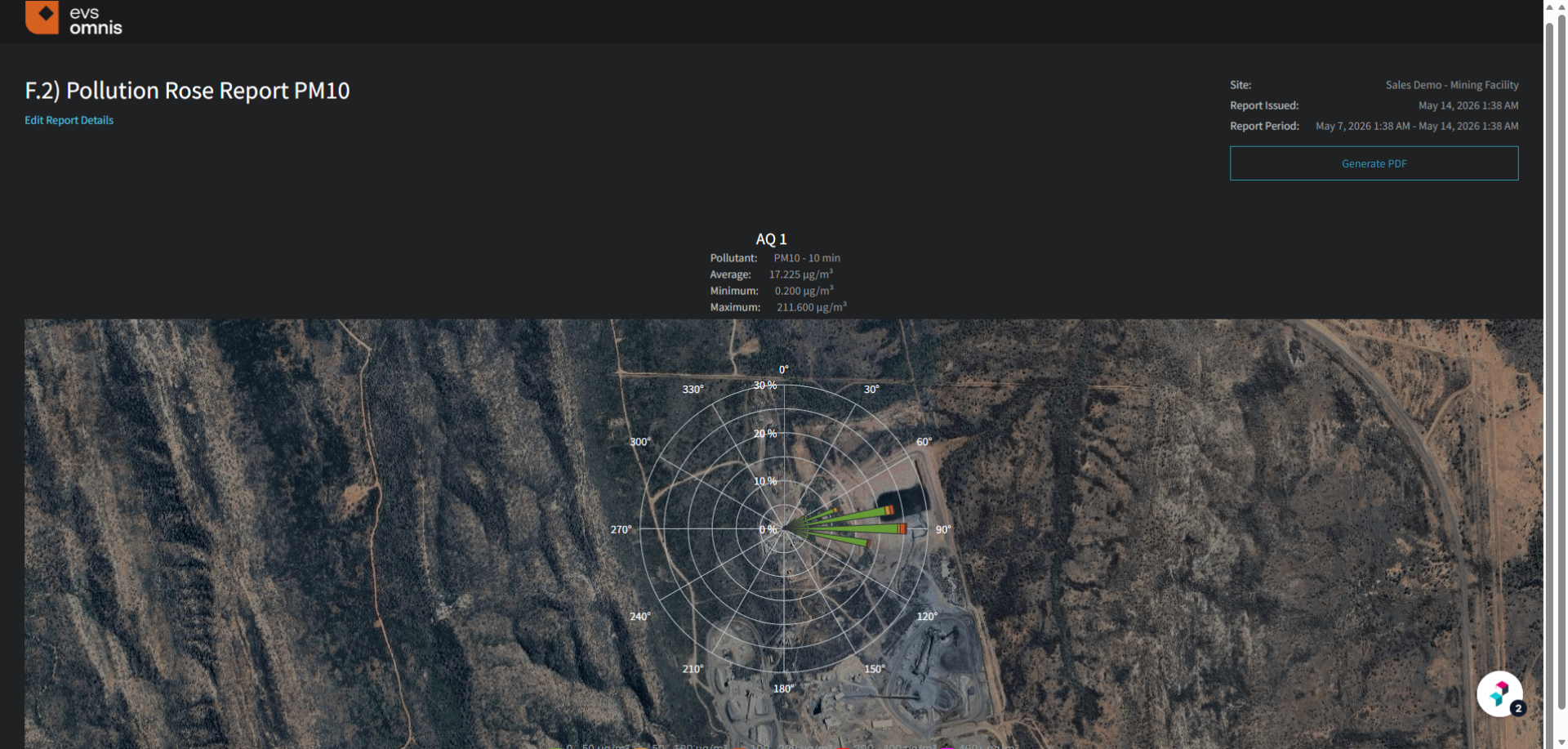

Switch to the new tab to access the pollution rose for detailed analysis.

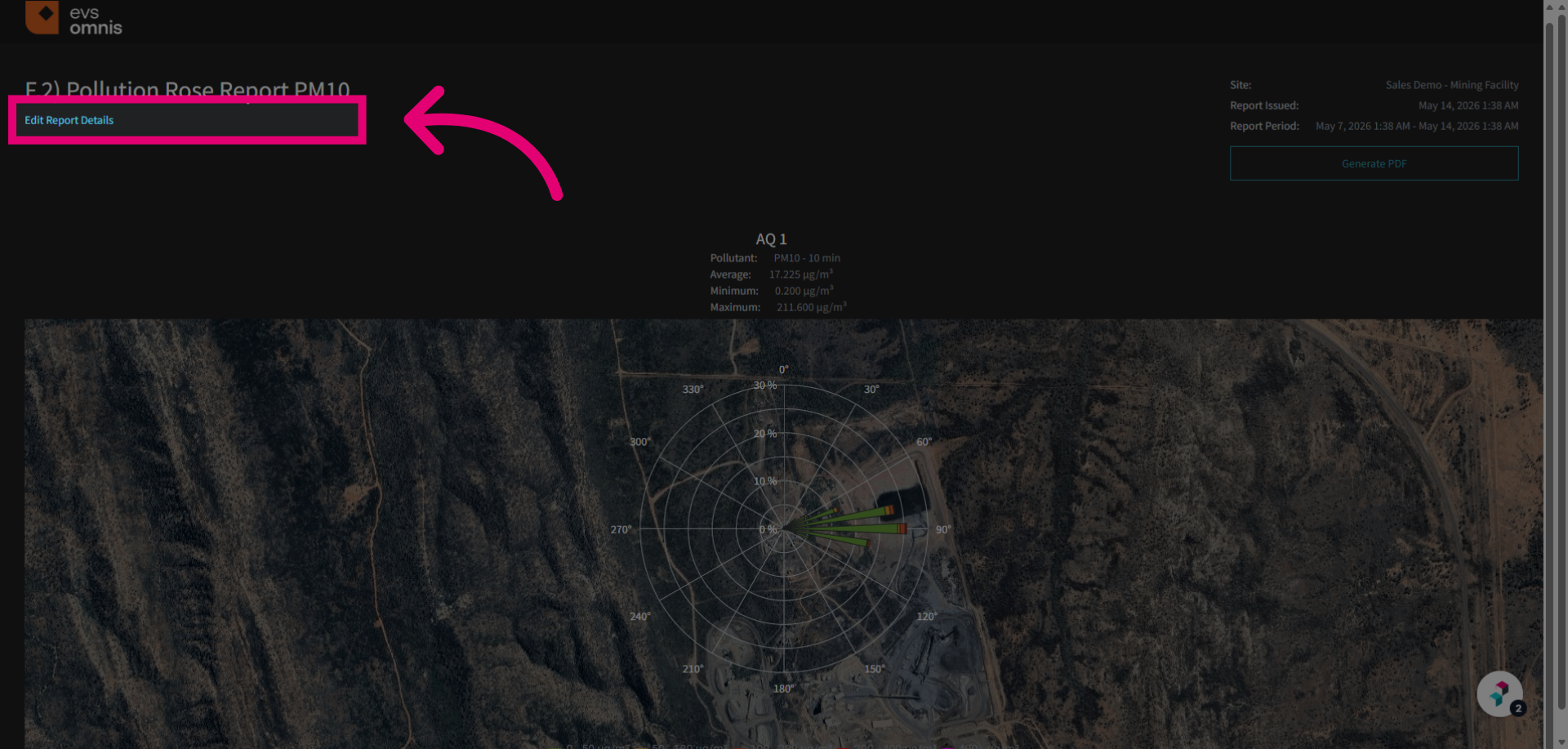

Click Edit Report Details to modify the parameters and settings of the current Pollution Rose report.

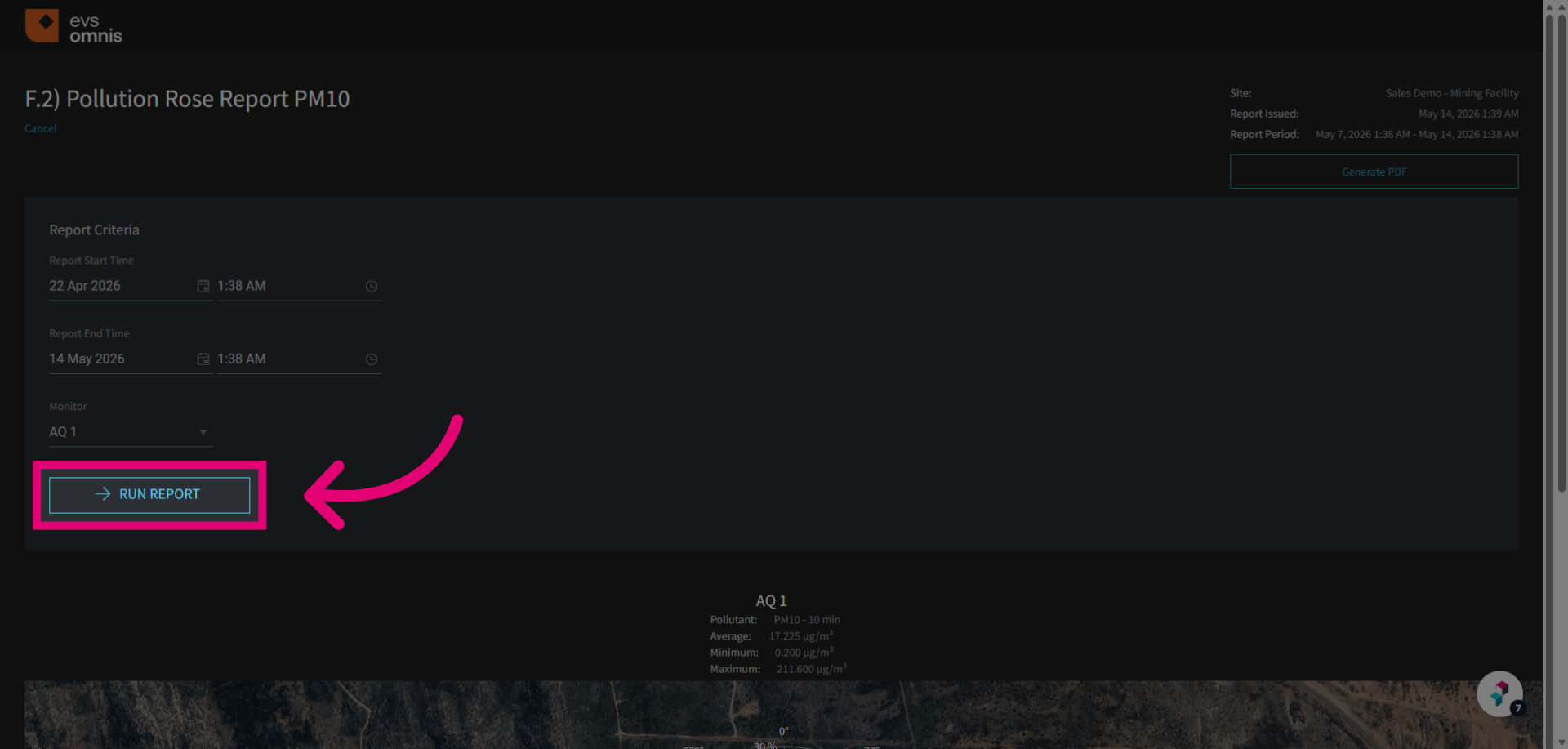

Click the Run Report button to generate the Pollution Rose frequency report based on the selected parameters.

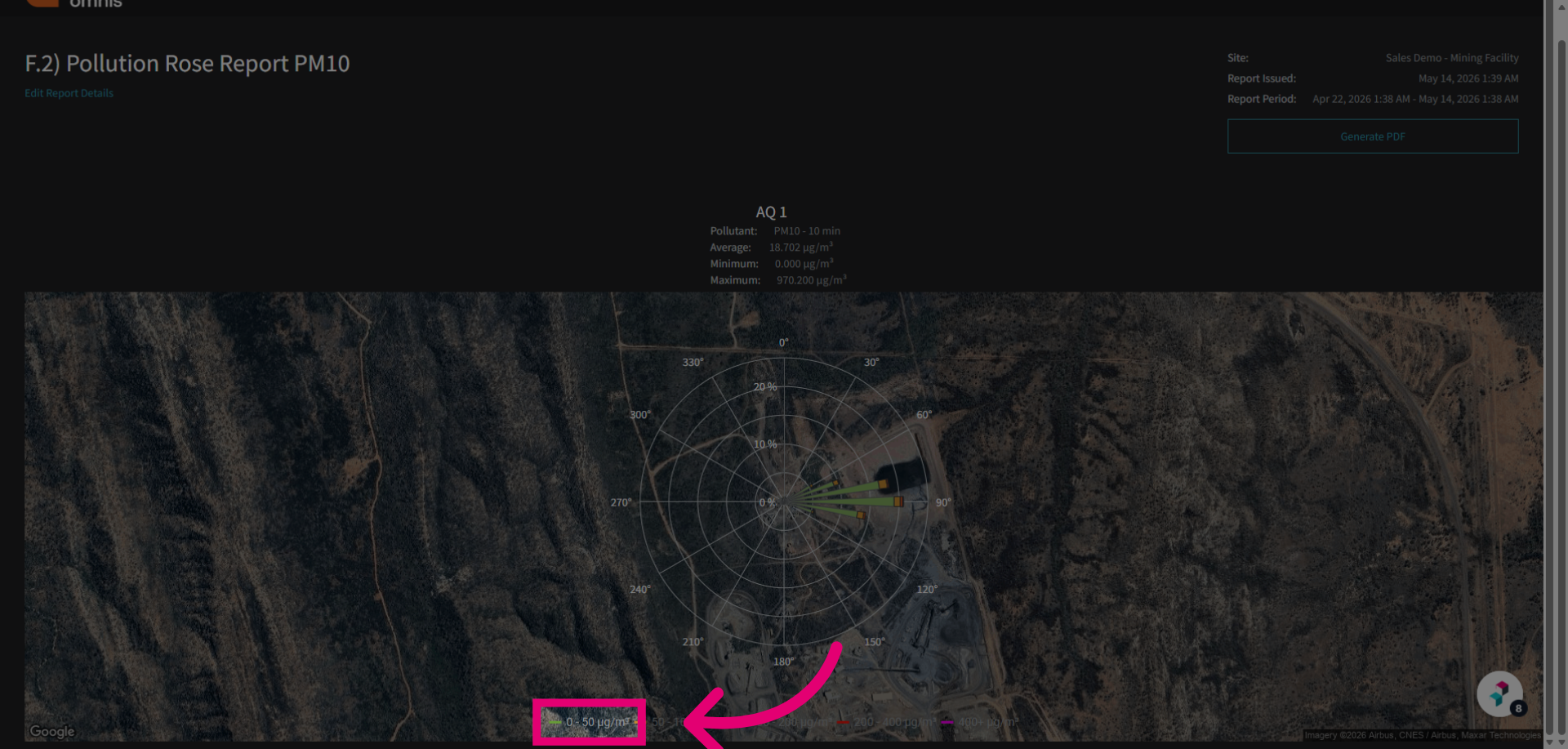

Click along the legend levels to filter concentrations in the visual.

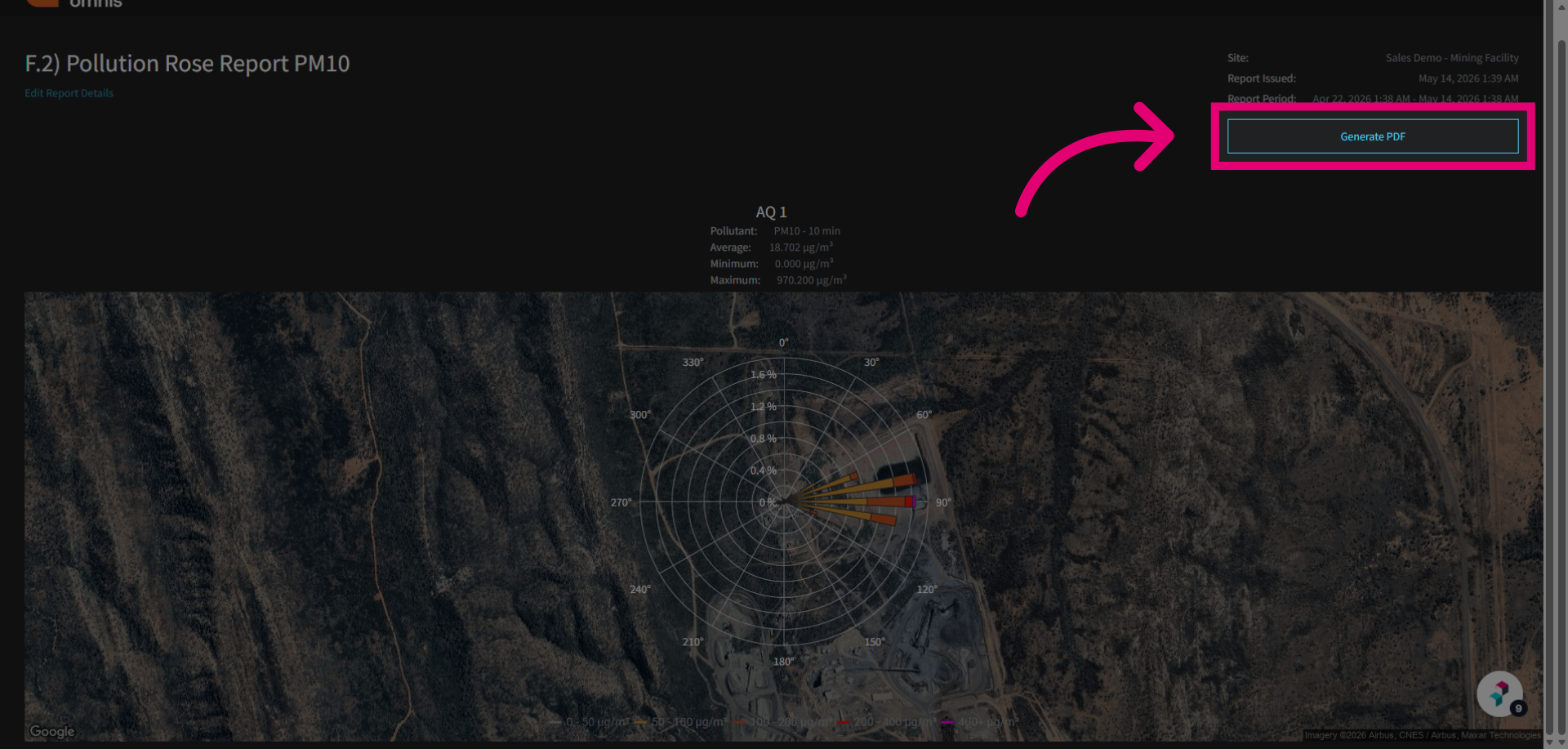

Click Generate PDF to create a downloadable PDF version of the Pollution Rose report for distribution or review.
